| 说明 | Description |
Unit
|

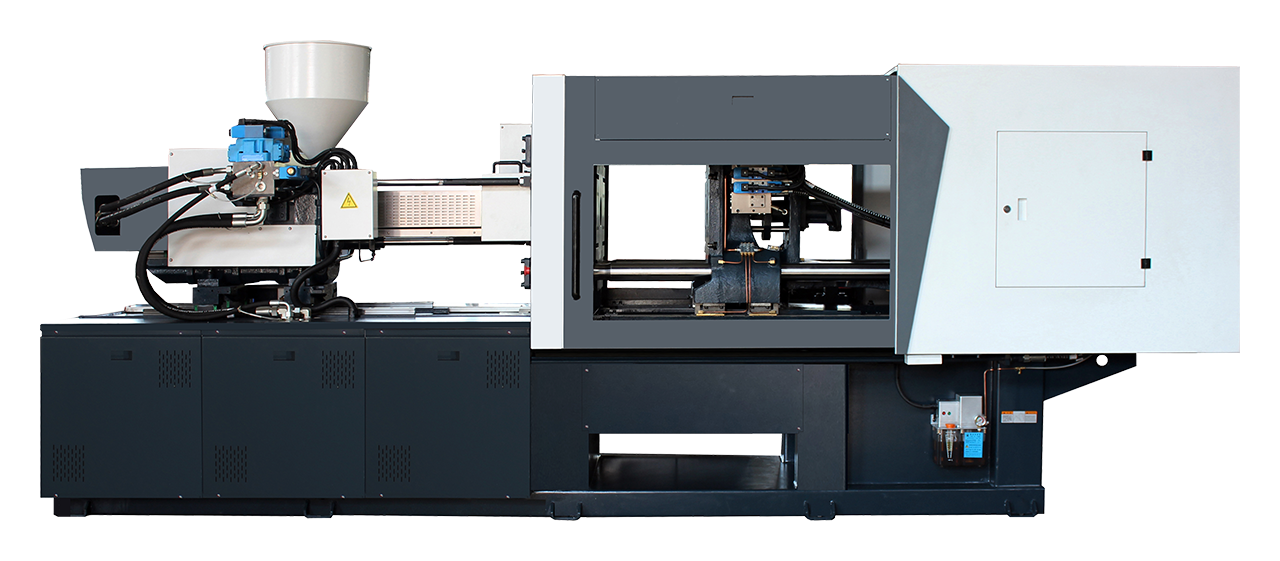

ARES 280-S+
|
||
|
A
|
B
|
C
|
|||
| 射胶系统 | Injection Unit | ||||
| 螺杆直径 | Screw diameter |
mm
|
55
|
60
|
65
|
| 螺杆长径比 | Screw L/D ratio |
—
|
23
|
21
|
19
|
| 理论射胶容积 | Theoretical shot volume |
cm³
|
713
|
848
|
995
|
| 射胶量(PS) | Shot weight (PS) |
g
|
656
|
780
|
916
|
| 射胶压力 | lnjection pressure |
MPa
|
215
|
178
|
150
|
| 注射速率 | Injection rate |
g/s
|
228
|
276
|
328
|
| 螺杆行程 | Screw stroke |
mm
|
300
|
||
| 螺杆转速 | Screw speed |
rpm
|
190
|
||
| 锁模系统 | Clamping Unit | ||||
| 锁模力 | Clamping force |
kN
|
2800
|
||
| 推力座行程 | Opening stroke |
mm
|
560
|
||

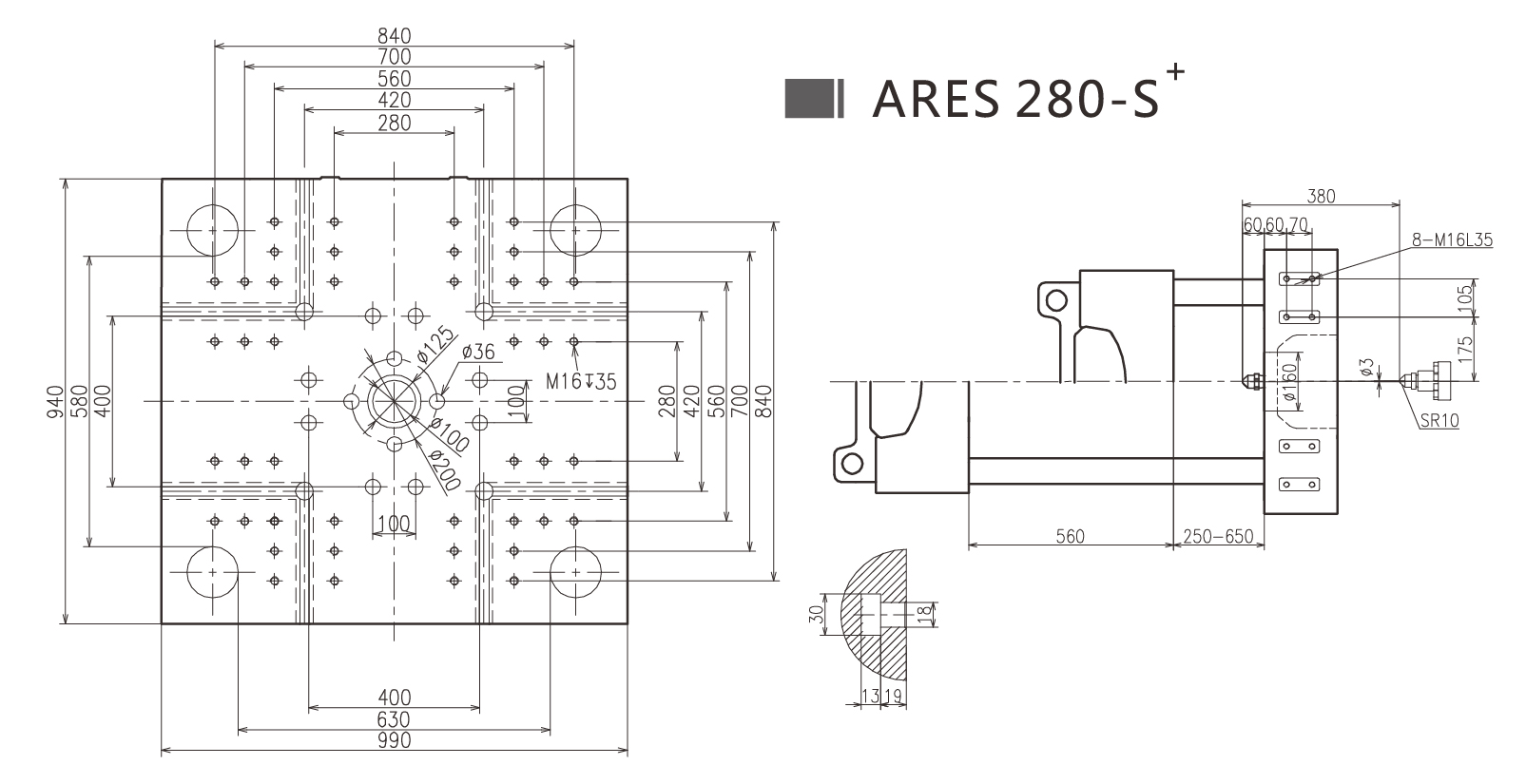

| 导柱内距(水平×垂直) | Space between tie bars (HxV) |
mm
|
630 x 580
|
||
| 模板最大距离 | Max. daylight |
mm
|
1250
|
||
| 最薄-最厚 | Mold thickness (Min-Max) |
mm
|
250 – 650
|
||
| 顶针行程 | Ejector stroke |
mm
|
190
|
||
| 顶针推力 | Ejector force |
kN
|
77
|
||
| 顶针杆根数 | Ejector number |
pcs
|
13
|
||
| 动力/电热 | Power/heating unit | ||||
| 系统压力 | System pressure |
MPa
|
16
|
||
| 伺服电机功率 | Motor pump capacity |
kW
|
42
|
||
| 电热功率 | Heating capacity |
kW
|
17
|
||
| 温度控制区数 | Number of temperature control zones |
—
|
5 + Nozzle
|
||
| 其它 | Others | ||||
| 料斗容积 | Hopper capacity |
L
|
50
|
||
| 油箱容量 | Oil tank capacity |
L
|
550
|
||
| 机身尺寸(长×宽×高) | Machine dimensions (L×W×H) |
m
|
6.3 x 1.75 x 2.2
|
||
| 机重 | Machine weight |
T
|
12.1
|
||
